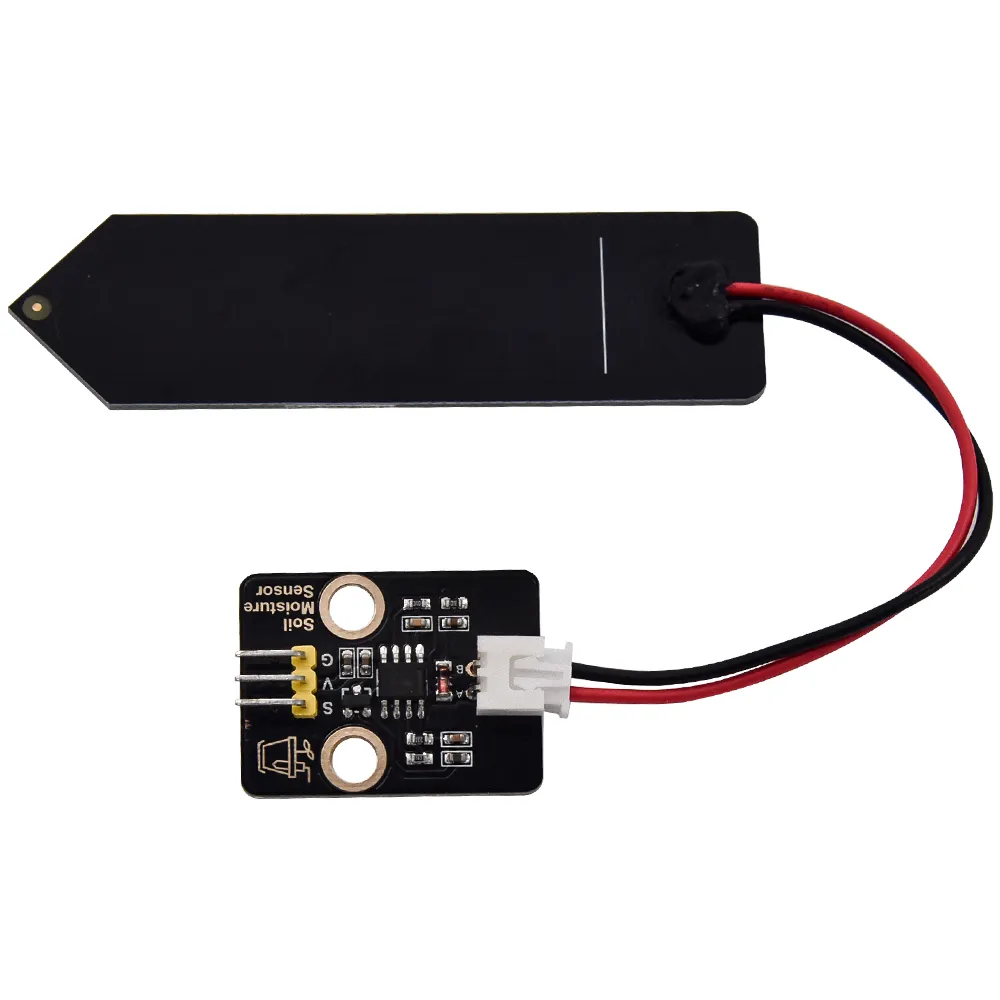

Soil Humidity / Moisture Sensor (New Type – Capacitive Sensor)
A soil moisture sensor can read the amount of moisture present in the soil surrounding it. It is ideal for monitoring garden, or your plant’s water level. This is a must have tool for a connected garden.
This new type capacitive soil humidity sensor differs from other resistive sensors, adopting capacitive sensing principle to detect soil humidity. Since the circuit is not exposed at the detected end, the corrosion problem of sensor is avoided, increasing the sensor operating life and measurments accuracy.
The built-in chip supports 3.3~5.5V working environment, Arduino, ESP32, micro:bit and controller. As to mini PC, you need an ADC module (analog signals are converted into signals).
EGP560.00
Specification
- Working voltage:Â 3.3 -5 V
- Working Current: <5ma
- Output: Analog signal
- Output voltage signal: 0~3V
- Working Temperature: 1℃~50℃

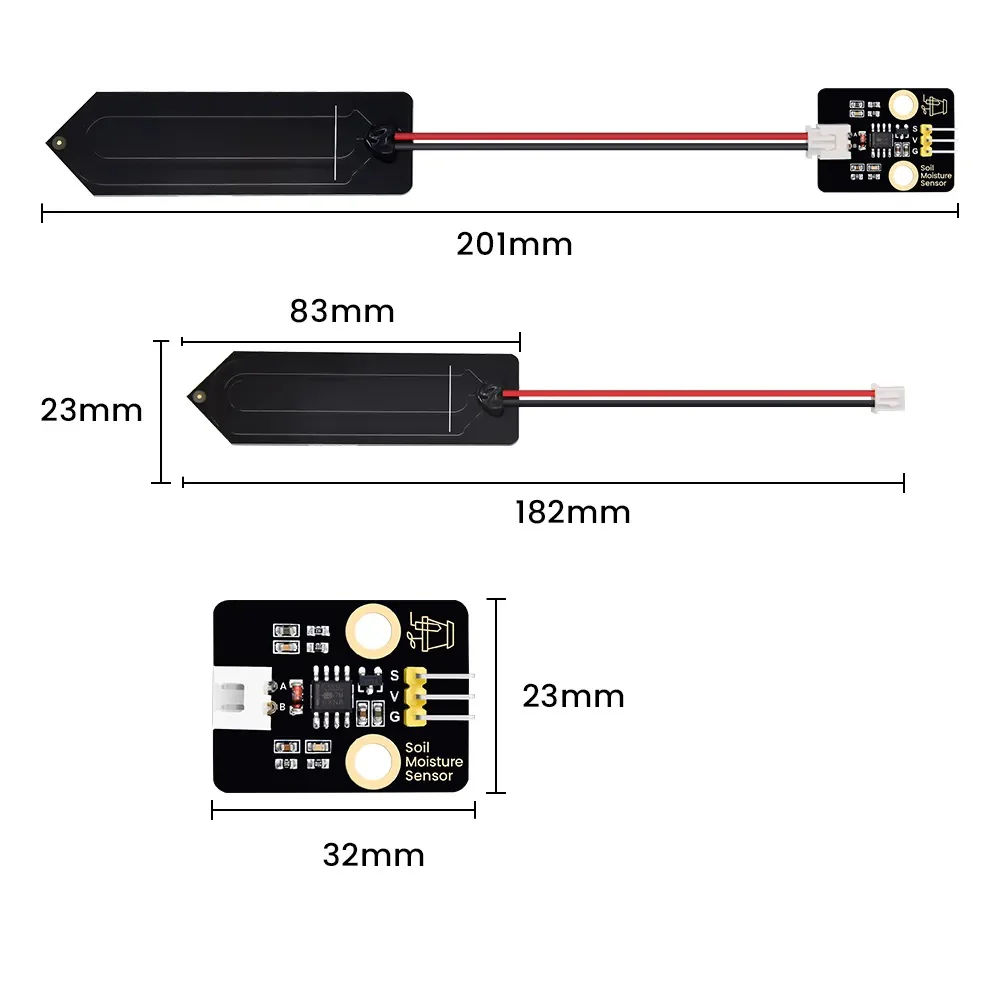

- Size:Â 23.8mm x 83mm
- Arduino compatible interface
- Low power consumption
- High sensitivity
Related Products

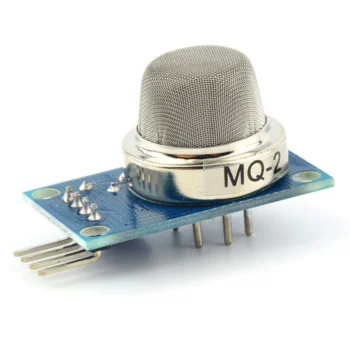

This smoke sensor module with MQ2 Smoke sensor have both digital and analog outputs , you also can adjust the sensitivity with the potentioneter.

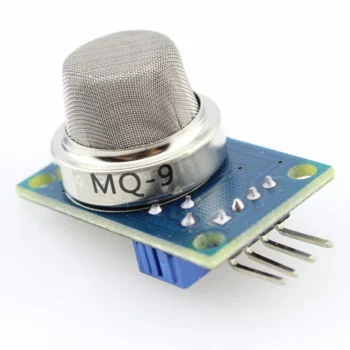

MQ-9 gas sensor has high sensitity to Carbon Monoxide, Methane and LPG. The sensor could be used to detect different gases contains CO and combustible gases, it is with low cost and suitable for different application.
The sensitivity of the sensor can be adjusted by using the potentiometer.

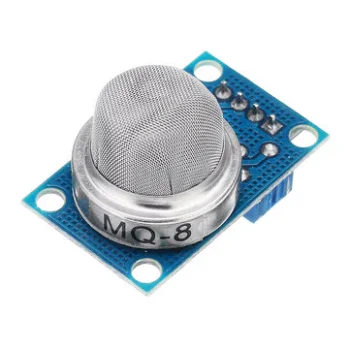

This sensor has a high sensitivity and fast response time. It is suitable for sensing hydrogen concentrations in the air. The MQ-8 can detect hydrogen gas concentrations anywhere from 100-10000ppm.
The sensor can output an analog or digital signal. The sensitivity can be adjusted by the potentiometer.
They are used in gas leakage detecting equipments in home and industry applications.

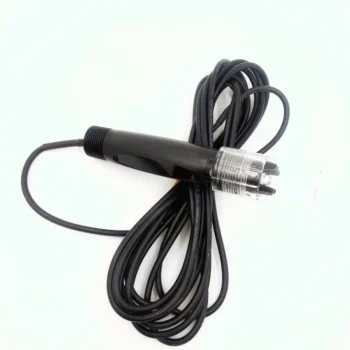

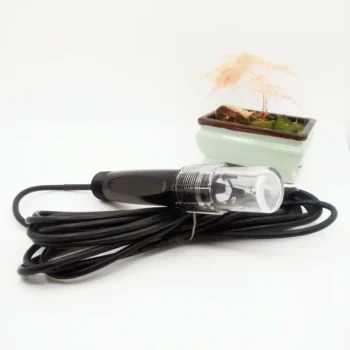

This water PH sensor is high quality, high precession, industrial standard water PH sensor. It is designed to be used in industrial applications such as water treatment facilities, rivers, lakes, peverage industry. The PH sensor equipped with 2 meter low noise cable. It is designed for low power consumption, long life and high measurement stability,
PH is a measure of acidity or alkalinity of a solution. It is commonly used to measure the quality of the water or for water monitoring. The pH scale ranges from 0 to 14.
Water detection sensor is used to detect water leak, water level or rains. This is obtained by having a series of parallel wires exposed traces. The sensor traces have a weak pull-up resistor of 1 MΩ. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the grounded trace.
The analog signal output can be read directly to arduino
A soil moisture sensor can read the amount of moisture present in the soil surrounding it. It is ideal for monitoring garden, or your plant’s water level. This is a must have tool for a connected garden.
This sensor uses the two probes to pass current through the soil, and then it reads that resistance to get the moisture level. More water makes the soil conduct electricity more easily (less resistance), while dry soil conducts electricity poorly (more resistance).
It will be helpful to remind you to water your indoor plants or to monitor the soil moisture in your garden. The IO Expansion Shield is the perfect shield to connect this senor to Arduino.
The new soil moisture sensor uses Immersion Gold which protects the nickel from oxidation.

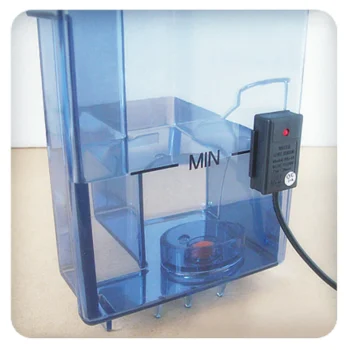

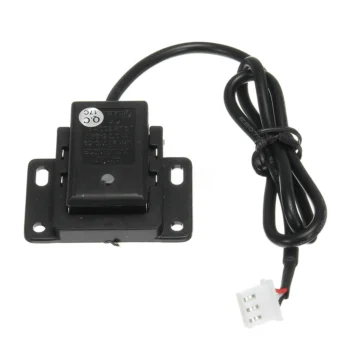

Non-contact liquid level sensor can be used to provide external monitoring in liquid non-metallic material tubes, pipes and tanks such as plastic, glass, fiber-glass and ceramics. The thickness of the tube/pipe/tank/container should be less than 10mm. It is easy to use as a led is on when the liquid level reached and voltage is detected from sensor output.
The contactless liquid level sensor can be used in household appliances products, drinking and cleaning water and water treatment equipment, medical treatment and foodstuff mechanism equipment, chemical mechanism equipment and so on.

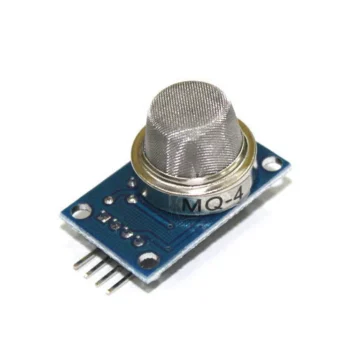

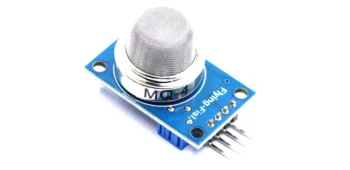

MQ-4 Sensor is highly sensitive to Methane – CH4.
Using a MQ sensor and detecting the gas is quite easy. You can either use the digital pin or the analog pin to accomplish this. Simply power the module with 5V and you should notice the power LED on the module to glow and when no gas is detected the output LED will remain turned off meaning the digital output pin will be 0V.

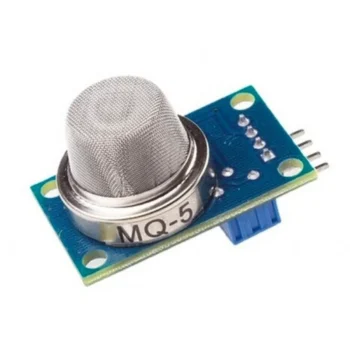

Sensitive material of MQ-5 gas sensor is SnO2, which with lower conductivity in clean air. When the target combustible gas exist, The sensors conductivity is more higher along with the gas concentration rising. The sensor convert change of conductivity to correspond output signal of gas concentration.
MQ-5 gas sensor has high sensitity to Methane, Propane and Butane, ch4 and natural gas.
This is an economical oxygen sensor to measure oxygen concentration (percentage) and gas Volumetric Flow Rate. The sensor measures the gas temperature also. The Oxygen sensor in home and medical oxygen generator, PSA oxygen generator, anesthesia monitors, medical ventilator, breathing equipment, oxygen analyzer, hospitals, laboratories, combustion and environmental applications.![]()
Â

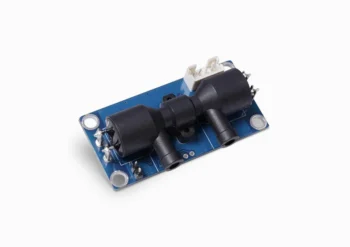

Ultrasonic oxygen sensor is the latest small volume gas
It uses the ultrasonic principle to detect the oxygen concentration and flow rate in the output gas of The oxygen generator, and outputs the detection result with UART digital.

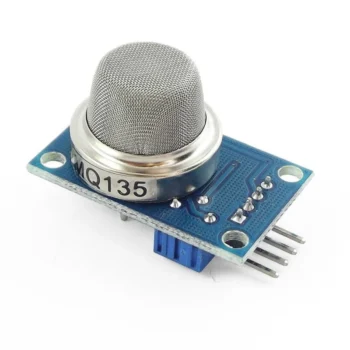

The MQ-135 gas sensor senses gases like ammonia nitrogen, oxygen, alcohols, aromatic compounds, sulfide, and smoke.
The boost converter of the chip MQ-3 gas sensor is PT1301. The operating voltage of this gas sensor is from 2.5V to 5.0V. The MQ-3 gas sensor has a lower conductivity to clean the air as a gas sensing material. In the atmosphere, we can find polluting gases, but the conductivity of the gas sensor increases as the concentration of polluting gas increases. MQ-135 gas sensor can be implemented to detect the smoke, benzene, steam, and other harmful gases. It has the potential to detect different harmful gases. The MQ-135 gas sensor is a low co st to purchase.

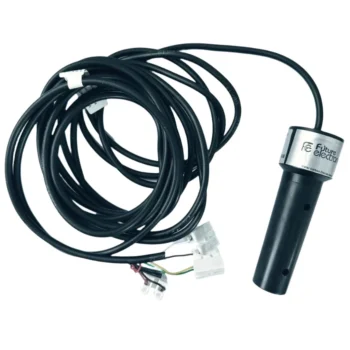

The measurement of dissolved carbon dioxide in water is one of the most important parameters in the field of aquaculture and in industry. So, this Carbon Dioxide (CO2) sensor probe allows the measurement of dissolved carbon dioxide directly in the water and soil. It can measure the Carbon Dioxide (CO2) concentration with high accuracy with large measuring range up to 5000 ppm. The CO2 probe has an analog both RS485 and TTL output for connection to your acquisition system.
